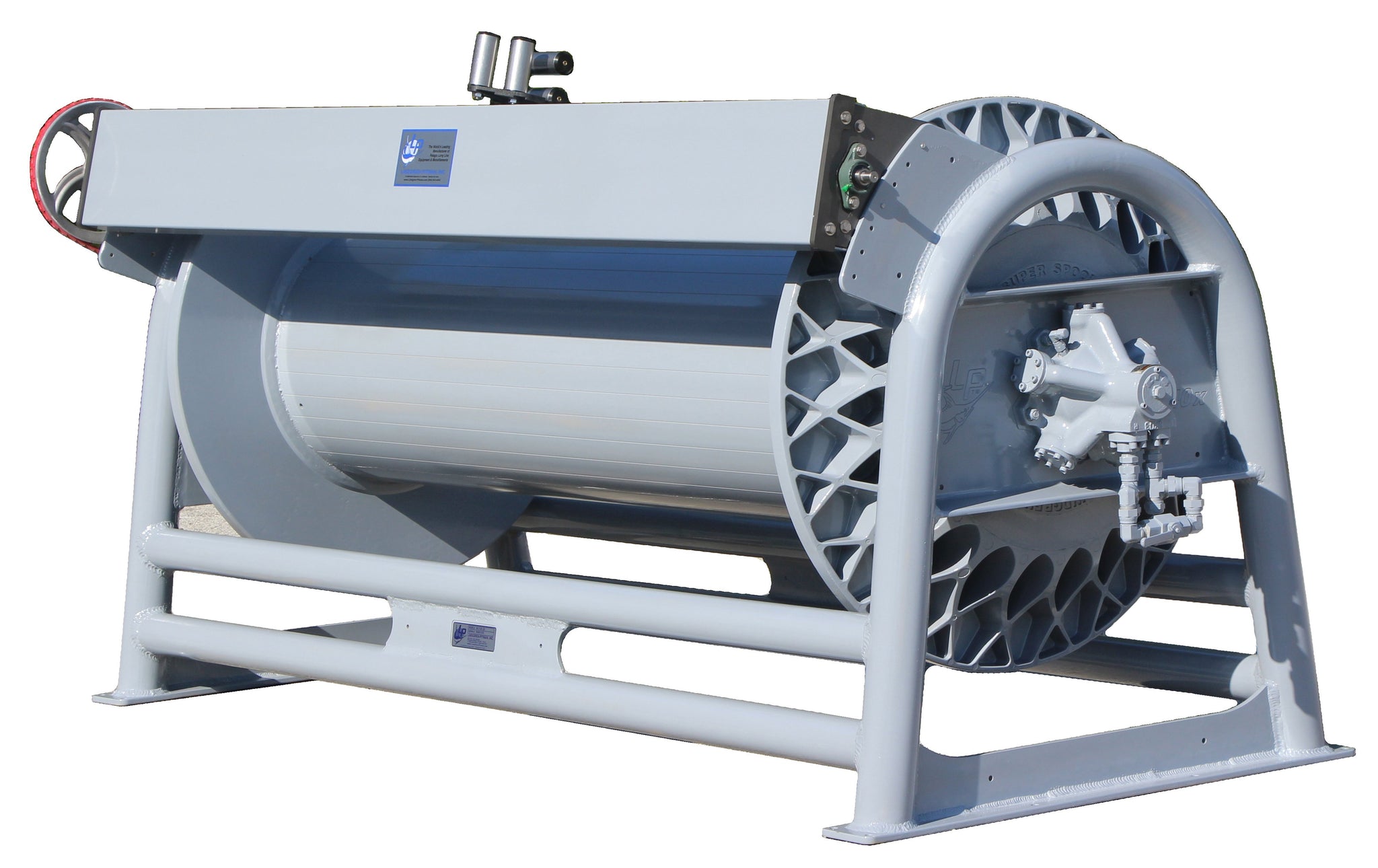

Super Spool III 40"

The new Super Spool III is designed specifically with monofilament line in mind.
Size	Approximate Empty Weight	Mono Capacity lbs.
LP-40x35-G3*	1,200 lbs.	1,100 lbs. Max
LP-40X48-G3	1,350 lbs.	1,500 lbs. Max
LP-40X60-G3	1,450 lbs.	1,900 lbs. Max
LP-40X80-G3	1,750 lbs	2,500 lbs. Max

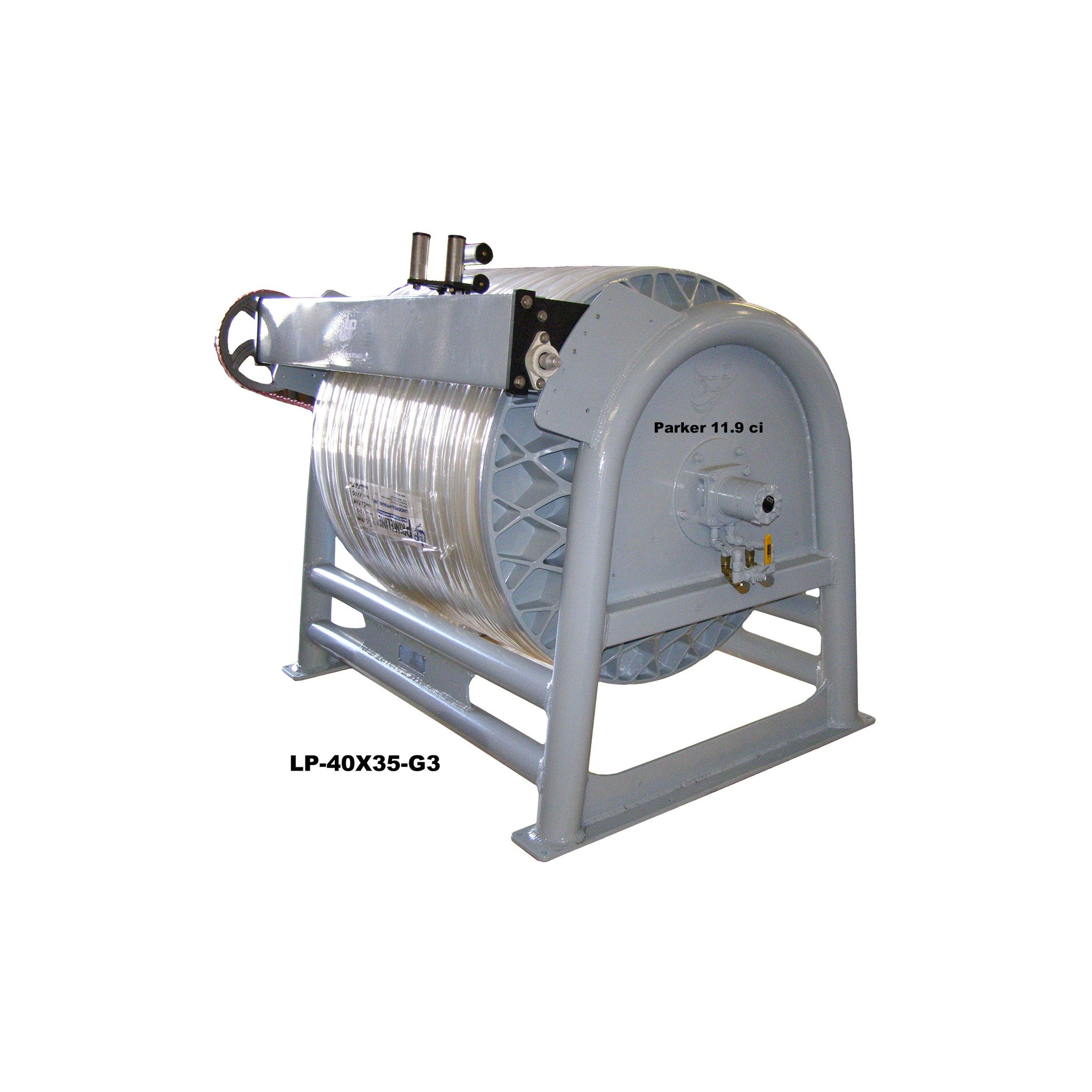

*LP-40x35-G3 Uses Parker Hydraulic Motor

Shortcut to Engineering Drawings

The new Super Spool III is designed specifically with monofilament line in mind. With a larger 22-inch core, the Super Spool III evenly distributes the pressure on the monofilament line - lowering stress when the line is stored. In the end, it means the monofilament will outlast line on other longline spools and reduce replacement costs. Lindgren-Pitman’s latest technology has eliminated welds between the end plates and the core to create a stronger longline spool with smoother hauling.

FEATURES:

Improved Hydraulics
Larger Spool Core
Innovative Construction
High-Tech Solid Cast Aluminum End Plates
Level Winder with Guard
Stainless Steel Shaft Assembly
Heavy-Duty Shaft Bearing
Heavy-Duty Formed Tube Stand
Line Setter Control

NOTE: *LP-40x35-G3 Uses Parker Hydraulic Motor 11.9 cubic inch

You will need Adobe Acrobat® Reader to read .pdf files.
If you do not have a copy, you can download a free copy from Adobe here.

Spool Capacity Chart

Typical Deck Layout

Spool Footprint Drawing Adobe Acrobat Format - 113k

Maintenance Manual Adobe Acrobat Format - 1.2mb

Installation Instructions Adobe Acrobat Format - 4.3mb

KYB Hydraulic Motor Manual Adobe Acrobat Format 5.9mb

Parker Taper Shaft Hyd. Motor Service Manual 2.8mb (LP-40X35-G3)
