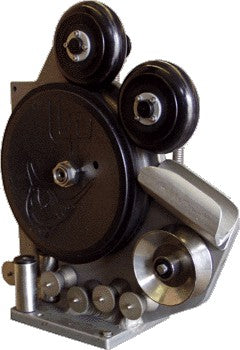

LS-5 Line Setter

The Lindgren-Pitman LS Series Line Setters are designed to pull monofilament longlines from the hauling/storage spool at a rate equal to or faster than the boat speed, as desired. The line can be set with a predictable sag between floats for fishing baits both deep and shallow as required. Bait depth can easily be controlled by adjusting the line setter speed control. Line setting speed is displayed on an optional digital readout meter to ensure accurate and repeatable line setting.

Hook and bait depth are a function of boat speed / setter speed, distance between floats, and buoy line length plus gangion length. Using the specially designed chart provided with the LS series line setter the maximum hook depth for the particular conditions can easily be calculated.

FEATURES

  • Anodized Aluminum Construction
  • Hydraulic Motor with Stainless Steel Shaft
  • Replaceable Drive Wheel Elements
  • Automatic Main Spool Control
  • Speed Control; ON/OFF Control
  • Smooth, Quiet Operation
  • Dual Idler Rollers
  • Quick Release Idler Rollers for Easy Threading & Maintenance
  • Ball Bearing, Stainless Steel Entrance Guide Rollers
  • Digital Speed Read Out, Self Powered (optional) Mounts on Motor Side of Frame

SPECIFICATIONS:
Weight 100 lbs.

Flow & Pressure Requirements:
12 GPM @ 1,500 PSI




 LS-5 Parts List Adobe PDF - 1.3mb

Line Setter Manual Adobe PDF - 1.6mb

LS-5 Foot Print Drawing Adobe PDF - 97kb

LS-5 Speed Read Out Mounting Instructions Adobe PDF - 7kb

Speed Read Out Calibration Adjustment Adobe PDF - 147kb

Linesetter Hook Depth Calculation Chart - 500k

LS3 / LS4 Speed Readout Pickup Instructions - 250k
