CALL TO ORDER

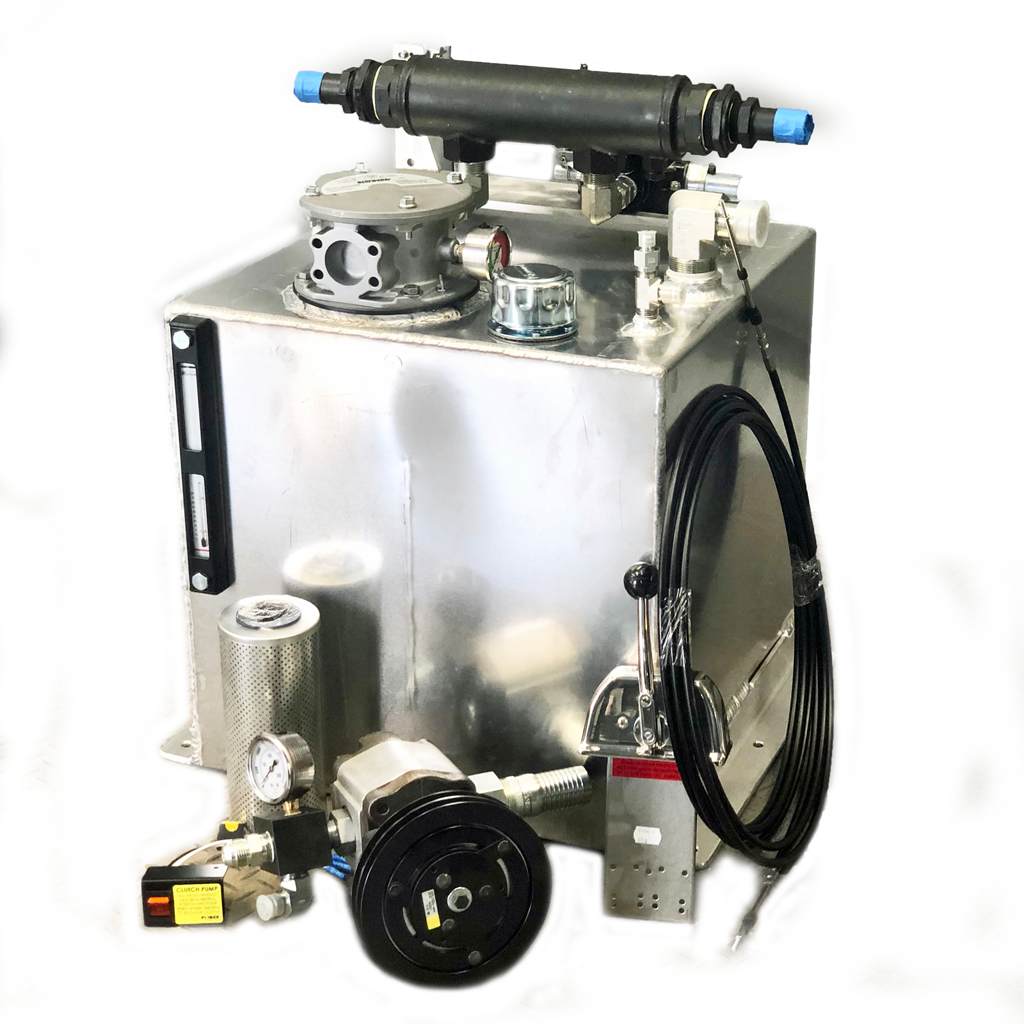

- Hydraulic Pump with Electric Clutch or Bypass Valve
- Aluminum Hydraulic Oil Tank
- Temperature Gauge Mounted on System
- Hydraulic Oil Filter
- Special Base, Including Control Valve and Cable Attachment
- Remote Control Unit and 30' of Cable (other lengths available on request)
- Oil Cooler Assembly
- Spare Hydraulic Oil Filter
- Instruction Labels for Easy Installation
Basic Hydraulic Package Footprint Drawing - 65k
OIL REQUIREMENTS - LP Hydraulic Systems |
Viscosity must be maintained within limits at the operating temperature. Petroleum based Hydraulic oil with a high viscosity index (95 or higher) and a viscosity grade of ISO VG 46 or 68 is optimum. |
Optimum Viscosity, SUS at 100 degrees F |
Fluid Cleanliness Levels ISO/DIS 4406 (SAE J1165) |
|
Gear Pump | 200-300 | 19/17/14 |
Piston Pump | 200-300 | 18/16/13 |
Geroller Motor | 200-300 | 19/17/14 |
Vane Motor | 200-300 | 19/17/14 |
Mobile Spool Valve | 19/17/14 | |
Cartridge Valve | 18/16/13 |
The fluid cleanliness levels described can be achieved in systems with normal dirt ingression by filtering one third of the total fluid volume in the system per minute across filter media of suitable dirt holding capacity and with a pore rating of 10 micron absolute (Beta 10 equal or greater than 200). |
